TMT BARS
TMT BARS

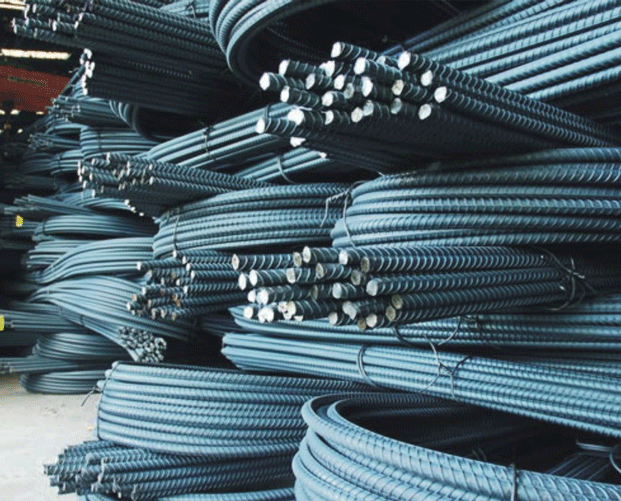

Our PMP TMT Bars that our manufactured have a consistent Grade of FE 415 , FE 500 depending on the yield strength
As per IS: 1786 yield strength (also known as 0.2% proof stress) of FE 500 is 500 N/mm².
AVAILABLE SIZES
8 mm
10 mm
12 mm
16 mm
20 mm
25 mm
32 mm
Section weight as per IS 1786:
| Size of Bars | Kg / mtr | ||
|---|---|---|---|
| Minimum | Standard | Maximum | |
| 8 mm | 0.367 | 0.395 | 0.432 |
| 10 mm | 0.574 | 0.617 | 0.66 |
| 12 mm | 0.844 | 0.888 | 0.932 |
| 16 mm | 1.501 | 1.58 | 1.659 |
| 20 mm | 2.396 | 2.47 | 2.511 |
| 25 mm | 3.735 | 3.85 | 3.966 |
| 28 mm | 4.685 | 4.83 | 4.975 |
| 32 mm | 6.121 | 6.31 | 6.499 |
Chemical Composition:
| Grade | C% (Max) | S% (Max) | P% (Max) | Mn% (Max) | Si% (Max) |
|---|---|---|---|---|---|
| Fe-415 | 0.25 | 0.055 | 0.055 | 0.055 | 0.3 |
| Fe-500 | 0.25 | 0.05 | 0.05 | 0.06 | 0.3 |
Mechanical Properties:
| Properties | Fe-415 (%) | Fe-500 (%) |
|---|---|---|
| Yield Stress, N/mm2 | 415 | 500 |
| Tensile Strength | 485 | 545 |
